Wire & Cable Extruders
TEC specializes in custom wire and cable extruder machines for coating (or jacketing) wires with protective material. Our machines are also perfect for fiber optic cabling solutions.
Vertical Co-Extruders
Available in sizes 3/4″ – 2-1/2″ diameter, L/D’s of 10:1 to 36:1. Standard and custom, single and dual post-configured models available to suit customer space requirements. All units have a double reduction helical gear reducer with heavy-duty thrust bearing, cast iron feed throat with integral water cooling jacket and bimetallic barrel liners. Per application: Bolt on or C-Clamp front flanges, variety of barrel heaters, air or water cooling of the barrel, AC or DC drives per customer request. Stainless steel hoppers standard.

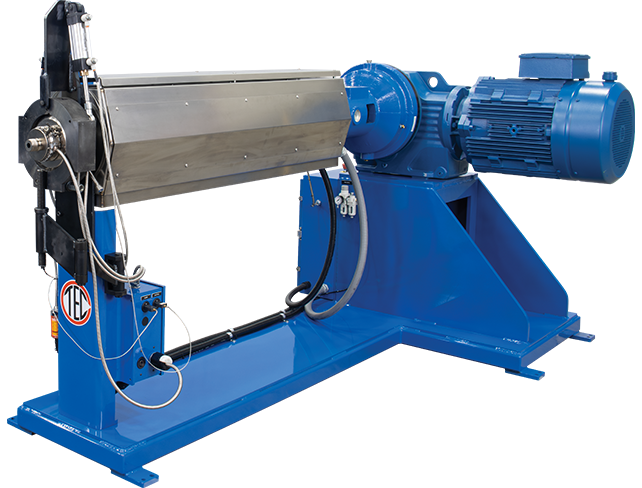

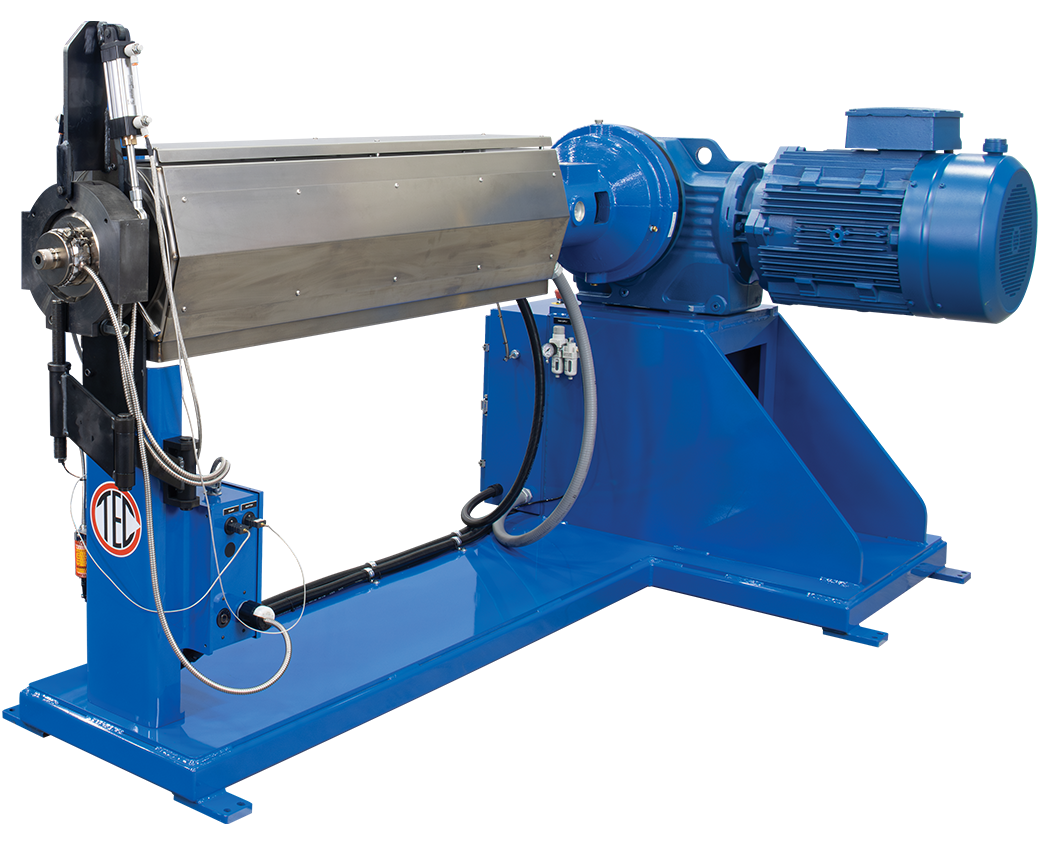

Horizontal Extruders
Available in sizes 3/4″ – 6″ diameter, L/D’s of 10:1 to 36:1 standard. All units have a double reduction helical gear reducer with heavy-duty thrust bearing, cast iron feed throat with integral water cooling jacket and bimetallic barrel liners. Per application: Bolt on or C-Clamp front flanges, variety of barrel heaters, air or water cooling of the barrel, AC or DC drives per customer request. Stainless steel hoppers standard.
Water Recirculating & Cooling
Available with 20, 30, 75, or 150-gallon reservoirs. All stainless steel construction including water pump. Reservoirs are fully insulated to prevent sweating and include heater(s), cooling coil, float level switches, thermocouple and cover. Custom-designed water troughs and air wipes.
